Huzhou Dongyao Chain Industry Co., Ltd. is one of the leading manufacturers and suppliers of 420h motorcycle chain in China. With abundant experience, we warmly welcome you to buy high quality 420h motorcycle chain from our factory. Also, custom service is available.
Product Overview
The DYLinkar 420H motorcycle chain is a reinforced non-sealed chain designed for small and medium-sized engine displacement vehicles. With a specification of 420H, it has a thicker chain plate compared to the ordinary 420 chain, which is suitable for higher load transmission requirements. The chain is made of carbon alloy steel and undergoes controlled atmosphere heat treatment and shot blasting treatment, with an ultimate tensile strength of 21.6 kN. It is pre-stretched before leaving the factory to eliminate initial elongation, and is equipped with spring clip-type universal joints. The product is practical in positioning and is suitable for daily riding and light off-road scenarios.
Key Features
Grade H thickened chain plate, with tensile strength reaching 21.6 kN.
01
The carbon alloy steel undergoes heat treatment and shot peening in a mesh belt furnace, resulting in uniform hardness of the chain plates and pin shafts.
02
The carbon alloy steel undergoes heat treatment and shot peening in a mesh belt furnace, resulting in uniform hardness of the chain plates and pin shafts.
03
The pre-stretching at the factory reduces the initial elongation, and there is no need for frequent adjustments after installation.
04
Spring-type snap-fit connection, allowing for easy assembly and disassembly without the need for special tools.
05
Technical specifications

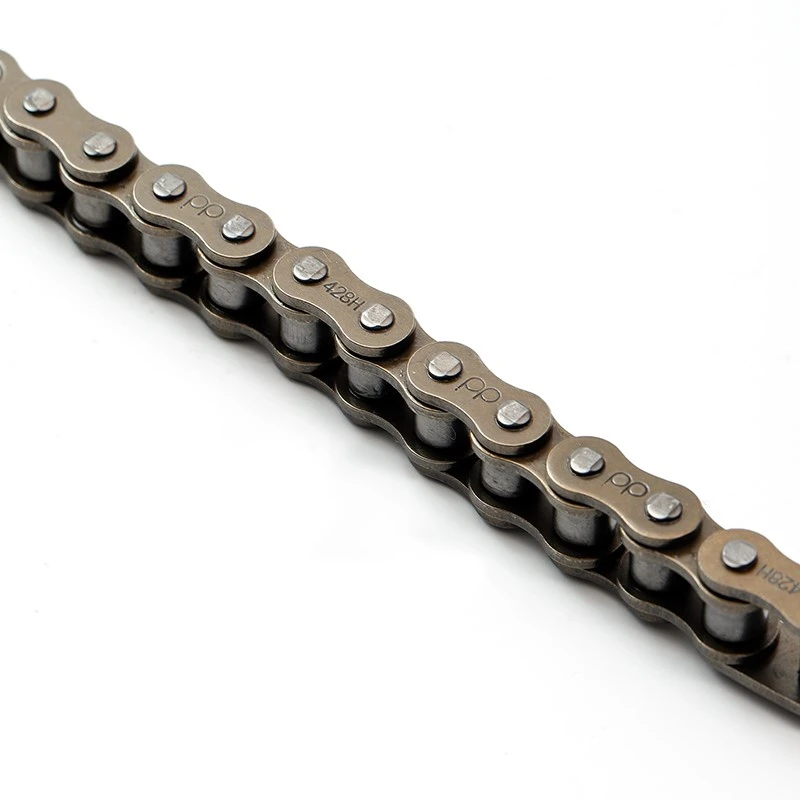

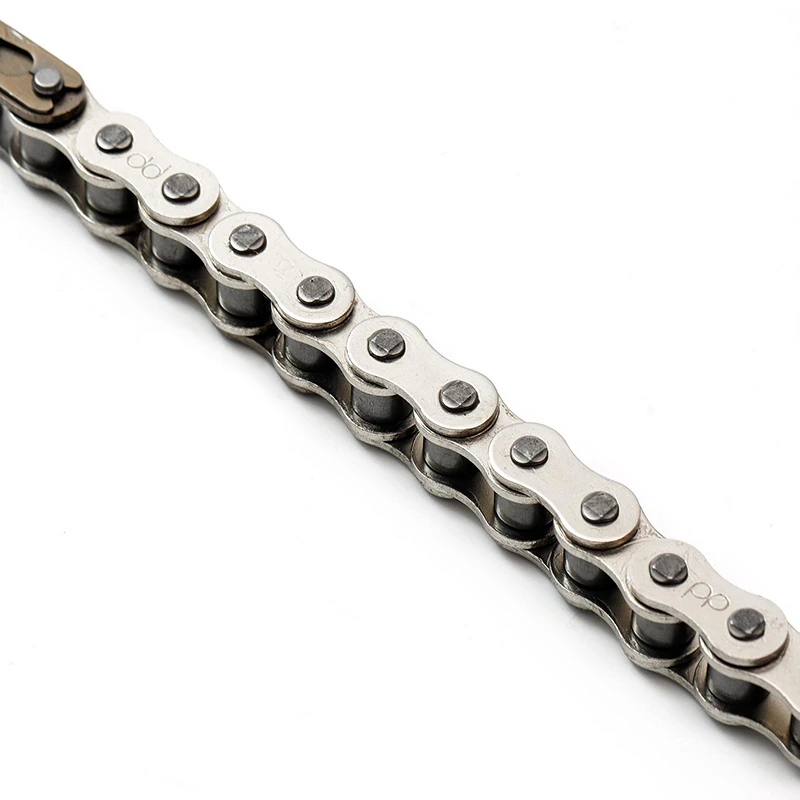

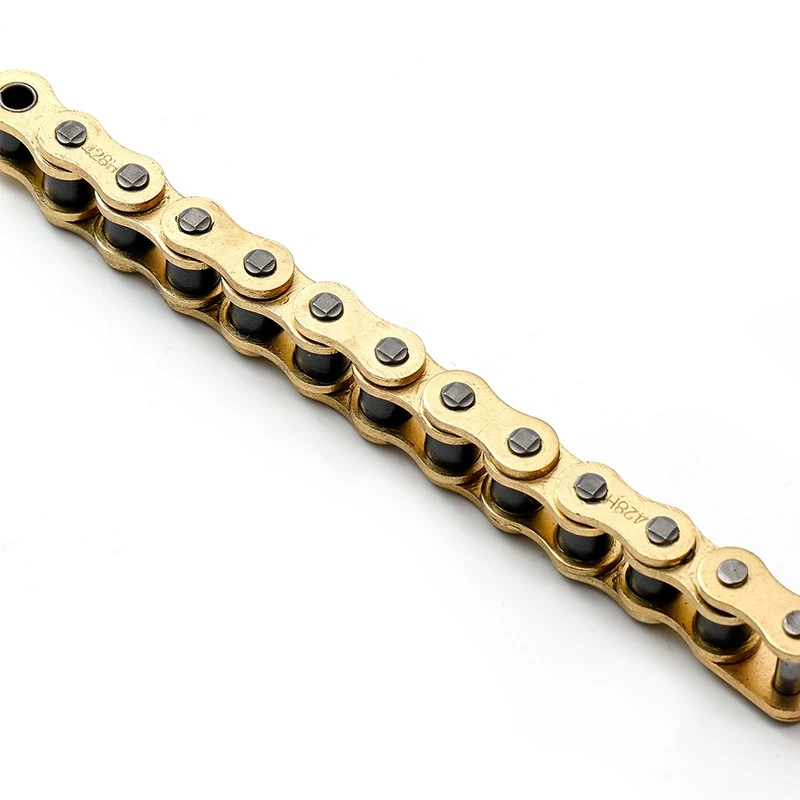

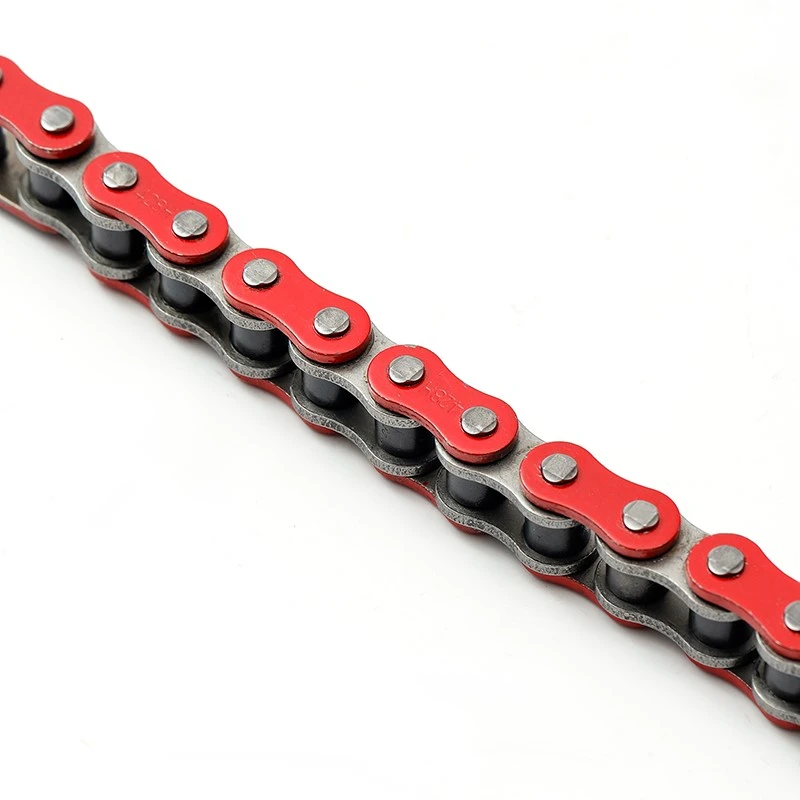

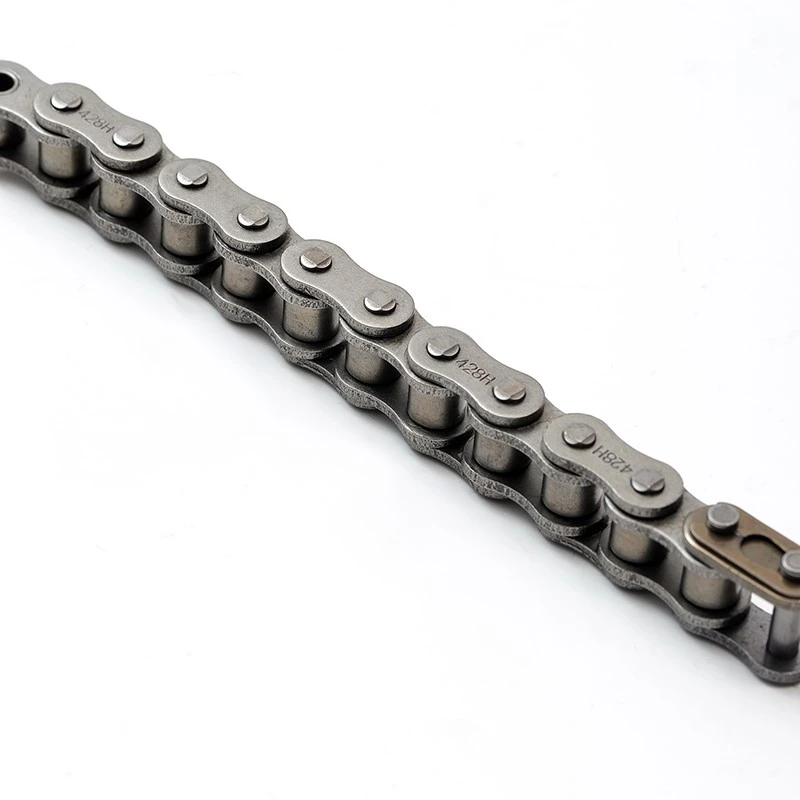

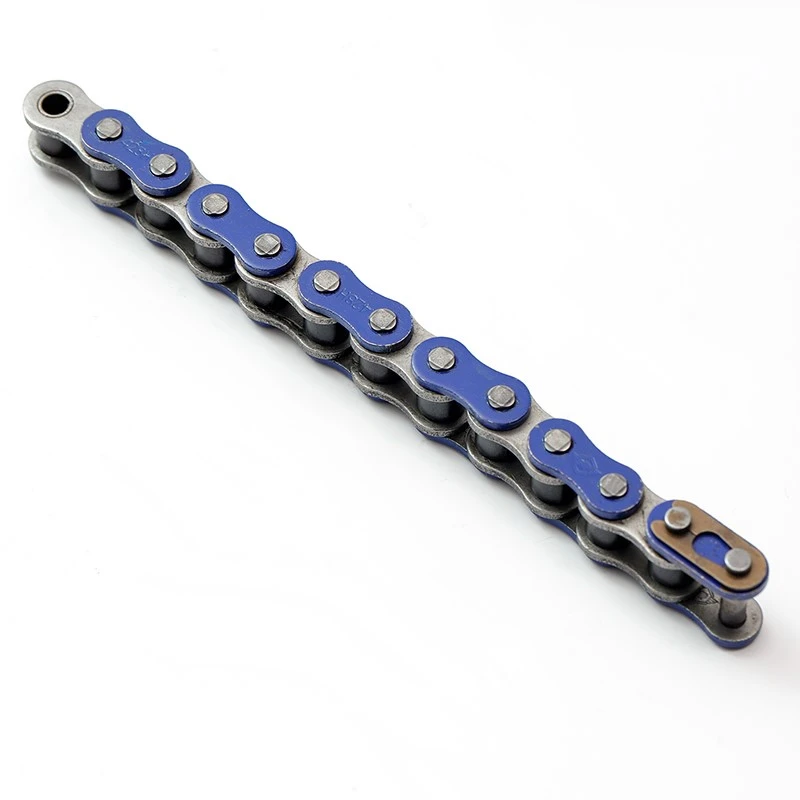

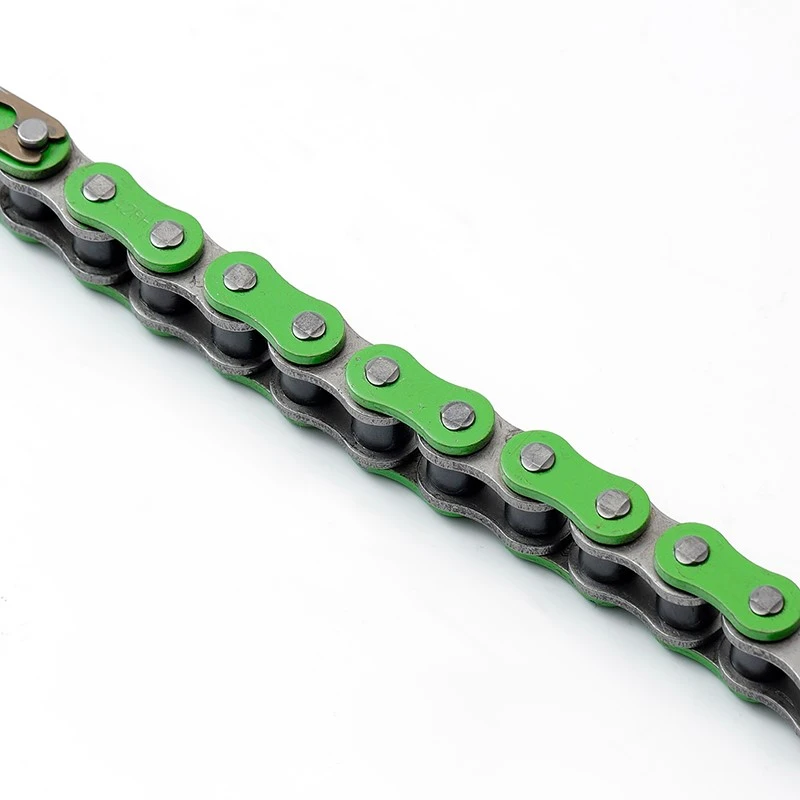

Product Images
Material&SurfaceTreatment
| Link plate | 40Mn |
| Main tube | 10CrMnMo |
| Small tube | Q195 |
| Pin shaft | 40Cr |
| Part processing | Heat treatment and quenching |
| Bright band | More than 90% |
| Service life | More than 50,000 kilometers |
Available Options
| Links | 100-140 Links |
| Color | Natural / Yellow / Blue / Gold / Silver / Colorful |
| Type | Standard / Heavy duty |
| Seal | Non-O ring / O ring optional |
| Master link | Clip / Rivet |
| Packaging | Carton / Pallet |
Application
- 125cc class city car and urban commuter vehicle - Meeting the basic requirements for chain strength and durability for daily short-distance transportation.
- Bent frame vehicles and light motorcycles - suitable for daily commuting models that are widely used in Southeast Asia and South Asia.
- Compact off-road vehicles and all-terrain vehicles - Designed to navigate muddy and waterlogged environments on unpaved roads, the thickened chain plates have superior shock absorption capabilities compared to ordinary chains.
- Commercial delivery motorcycles - Designed for frequent use scenarios such as food delivery and express delivery, enhancing structure to extend replacement cycle.
Compatibility
- Adapts to the 420H specification standard sprocket - pitch 12.70mm, roller diameter 8.51mm, inner pitch width 7.75mm, all conforming to the standard.
- It can directly replace the original factory and after-sales chains of the same specification - suitable for all types of small motorcycles equipped with the 420H transmission system.
- Compatible with models with engine displacement of ≤ 125cc - covers street bikes, cruisers, off-road vehicles and light ATVs.
- Compatible with 13T-16T / 36T-46T gear sets - fits well with various sprockets.
- Standard length covers common specifications - offers various length options such as 98L, 100L, 102L, 104L, 106L, 108L, 110L, 120L, etc.
Product Delivery
Customization capability
- Surface treatment
- Material grade
- Connection method
- Customize the links / length of sections
- Packaging and accessories
- Brand customization (OEM/ODM)
FAQ
Q:What is the proper procedure for installing a new industrial roller chain?
A:Installing a new industrial roller chain involves safety first (power off), followed by inspecting sprockets & shafts, ensuring proper alignment, fitting the chain around sprockets, correctly joining the ends with a master link (using a chain puller for tension), setting the correct sag/tension (approx. 1/4" per foot of span), and finally, lubricating and testing for smooth operation, with a recheck after initial use.
Q: What are the most common causes of premature roller chain failure?
A:The most common causes of premature roller chain failure are improper lubrication, overloading, contamination, and misalignment, often working together to cause accelerated wear, elongation, and fatigue.
